CB100（321） Bailey Bridge
1.Priming paint(antirust paint) +Finishing coat(Army Green color or your design
2.Acid picking + Hot dip galvanizing
Model Name :
100 Type Bailey Bridge
Current Project :
Compact 100 bailey bridge
Derived Model:
33.8m Compact 100
Classification :
keyword：Tuotian Bailey Bridge
Product description

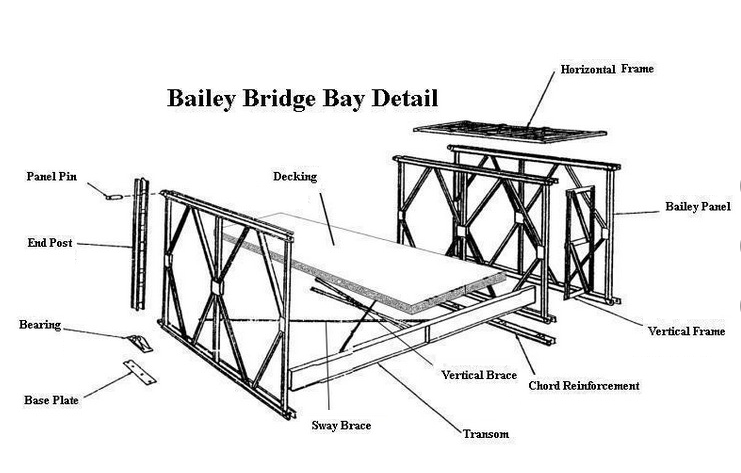

What is Bailey Bridge?
Bailey bridge is a portable, pre-fabricated truss bridge designed for rapid assembly and use in emergency situations, such as military operations or disaster relief. It was developed by the British during World War II and has since become a widely used solution for temporary bridging needs.
Key attributes
| Grade | Steel | ||||||||
| Tolerance | ±1% | ||||||||
| Standard | GB | ||||||||
| Place of Origin | Hunan,China | ||||||||
| Delivery Time | 15-21 days | ||||||||
| Brand Name | TTBAILEY | ||||||||
| Model Number | CB100,HD100 | ||||||||
| Type No. | Heavy | ||||||||
| Application | Steel Structure Bridge | ||||||||
| Processing Service | Bending, Welding, Decoiling,Cutting,Punching | ||||||||
| Surface treatment | Painting, Galvanized | ||||||||
| Color | Green, Customize | ||||||||
| Material | Q235B, Q345B, Q355B | ||||||||
| Orginal | Hunan, China | ||||||||
| Certificate | ISO9001 | ||||||||
| Advantages | 1.Rapid Deployment -Bailey bridges can be assembled quickly, often in a matter of hours, making them ideal for emergency situations. 2.Portability -The modular design allows the bridge components to be transported easily, even to remote or difficult-to-access locations. 3.Versatility -They can be configured to span various lengths and support different load capacities, depending on the requirements. 4.Reusability -Bailey bridges can be disassembled and reused multiple times, making them cost-effective. 5.Durability -Made from high-strength materials, they are capable of supporting heavy loads, including military vehicles and equipment. 6.No Specialized Tools Required -Assembly can be done with basic tools and minimal training. |
||||||||
| 321(100)Truss Press Limited Table | |||||||||
| No. | Internal Force | Structure Form | |||||||
| Not Reinforced Model | Reinforced Model | ||||||||
| SS | DS | TS | DD | SSR | DSR | TSR | DDR | ||
| 321(100) | Standard Truss Moment(KN.m) | 788.2 | 1576.4 | 2246.4 | 3265.4 | 1687.5 | 3375.0 | 4809.4 | 6750.0 |
| 321(100) | Standard Truss Shear(KN.m) | 245.2 | 490.5 | 698.9 | 490.5 | 245.2 | 490.5 | 698.9 | 490.5 |
| 321(100)Table of Geometric Characteristics of Truss Bridge(Half bridge) | |||||||||
| Type No. | Geometric Characteristics | Structure Form | |||||||
| Not Reinforced Model | Reinforced Model | ||||||||
| SS | DS | TS | DD | SSR | DSR | TSR | DDR | ||
| 321(100) | Section Properties (cm³) | 3578.5 | 7157.1 | 10735.6 | 14817.9 | 7699.1 | 15398.3 | 23097.4 | 30641.7 |
| 321(100) | Moment of Inertia (cm⁴) | 250497.2 | 500994.4 | 751491.6 | 2148588.8 | 577434.4 | 1154868.8 | 1732303.2 | 4596255.2 |
These bridges also have a high load - bearing capacity. They can support the weight of heavy vehicles, including trucks and military vehicles. This makes them suitable for both military and civilian applications. In military operations, Bailey bridges can be used to establish supply lines across rivers or other barriers, ensuring the smooth movement of troops and equipment. In civilian construction projects, they can serve as temporary bridges during the construction of permanent structures, facilitating the movement of construction materials and machinery.
The design of Bailey bridges also takes into account factors such as stability and safety. The interlocking components and proper bracing ensure that the bridge can withstand the forces exerted on it, including wind, water currents, and the dynamic loads of vehicles passing over it. Additionally, the steel used is often treated to resist corrosion, which helps to prolong the life of the bridge, especially in outdoor and often - wet environments. Overall, the Bailey bridge is a testament to efficient engineering design, providing a reliable and flexible solution for bridging needs.
